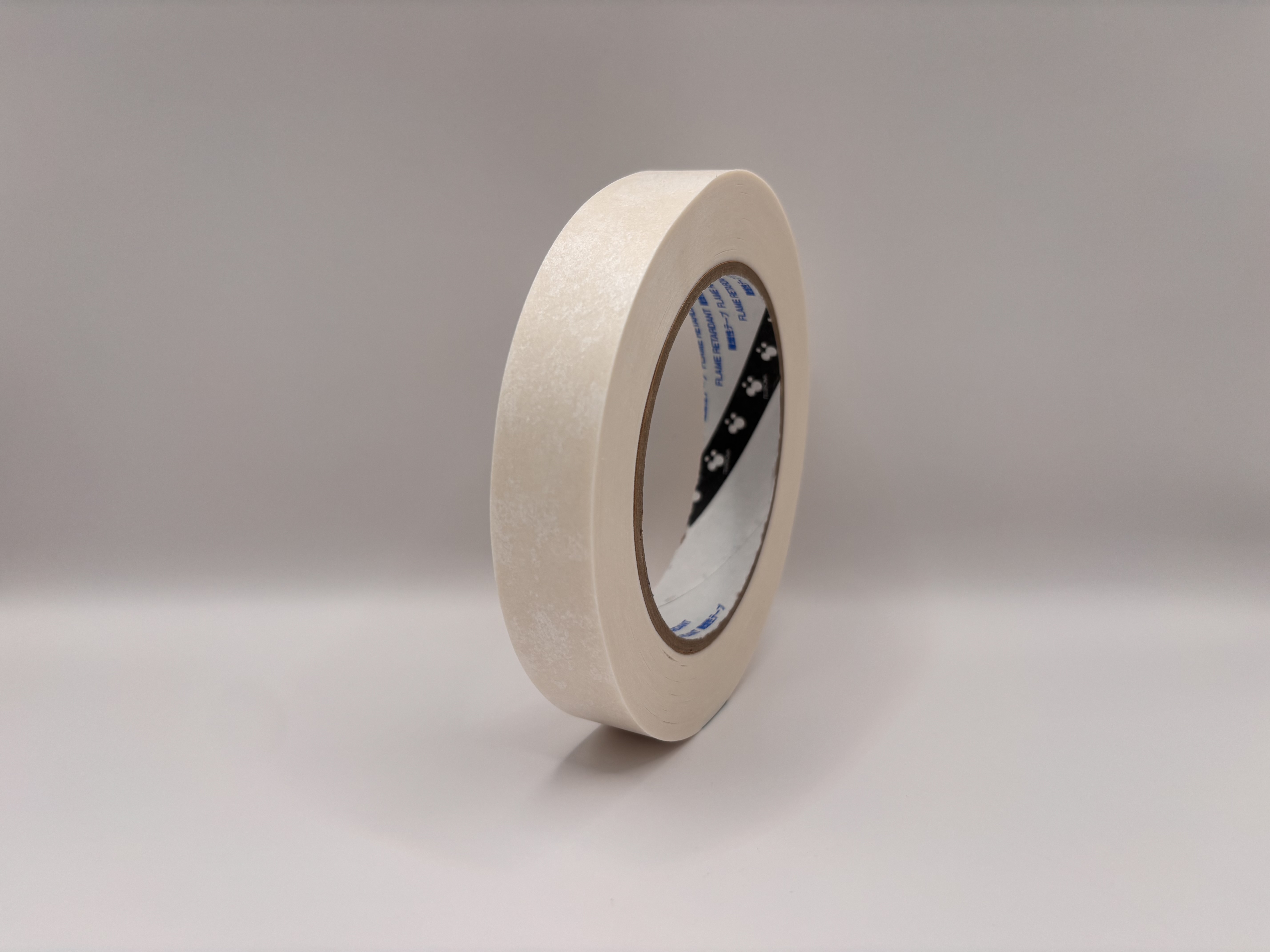

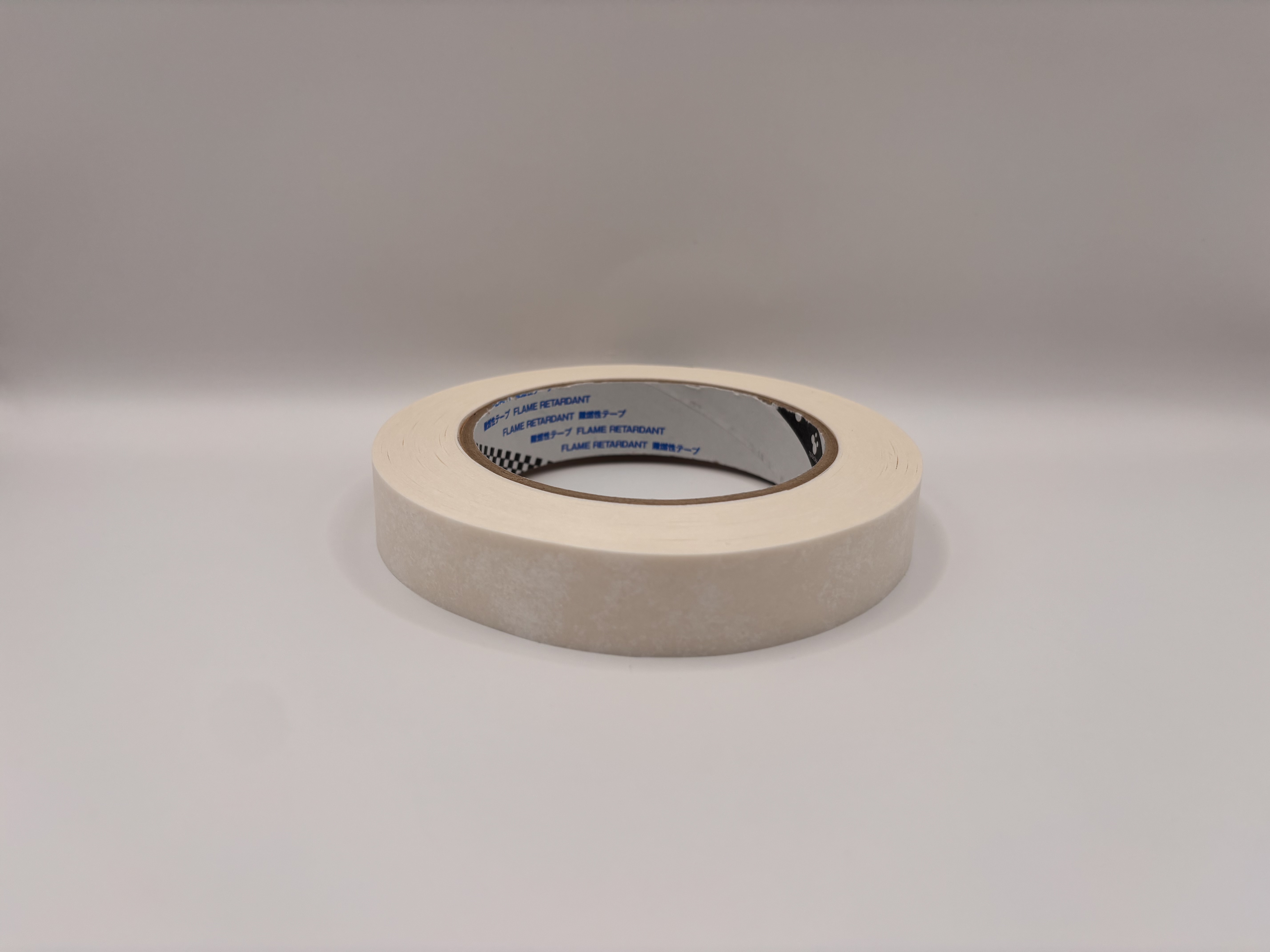

This electrical insulation tape has excellent heat resistance, insulation, and flame retardance.
Excellent strength against puncture.
UL Standard: UL Temperature rating 200°C, Flammability test UL510 Flame retardant certified.
Features
- Excellent heat resistance.
- Excellent strength against puncture.
- Non-Dechlorane Plus.
- UL Standard (File № E56086, UL Temperature rating 200°C, Flammability test UL510 Flame retardan certified).
Structure
Purpose
- Heat-resistant insulation for various electronic components.
- Protection of metal edges.
Characteristics
| #5 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total thickness (mm) | 0.20 | ||||||||||
| Standard colors | White | ||||||||||
| Standard width (mm) | － | ||||||||||
| Standard length (m) | 30 | ||||||||||
| Peel adhesion (N/25mm) The first adhesive side (the inner side) / The second side (the outer side) |
22.98 | ||||||||||
| Tensile strength(N/25㎜) | 342.5 | ||||||||||
| Elongation(%) | 17 | ||||||||||
| Breakdown voltage (kV) | 5.5 | ||||||||||
| Shear adhesive strength (N/400㎟) | － | ||||||||||
| Measurement conditions and other measurement items | － | ||||||||||
| Standards and Certification | UL510 Flame retardant UL Temperature rating 200°C |
||||||||||
| Remarks | This product does not intentionally use any of the 10 Rohs2 directive substances. | ||||||||||
Notes
The above data are reference values measured by JIS or our test method and are not guaranteed values. Customers are advised to conduct tests in advance and use the product only after thoroughly confirming that it conforms to the intended use. Do not apply to the human body. Wipe off dust, oil, and moisture from the surface to be applied, and press firmly to apply. When storing, avoid direct sunlight, high temperature and high humidity. Products and product specifications are subject to discontinuation or change without notice.
For more information about our products, please contact the nearest branch or sales office.
